Solight DVB-T antenna, 22dBi | SOLIGHT

Solight DVB-T antenna, 22dBi

Product code: HN55-LTE
  • EAN: 8592718018061
  • Solight DVB-T antenna, 22dBi
  • Solight DVB-T antenna, 22dBi
  • an antenna for receiving terrestrial digital television in HD quality
  • built-in weatherproof amplifier
  • DVB-T and DVB-T2 signal reception
  • frequency range: 470 - 790MHz
  • DVB-T range: 21 - 60th UHF channel
  • maximum antenna gain: 19 - 22dB
  • built-in LTE/4G filter
  • number of elements: 20
  • directional, fixture for vertical bracket, mast and horizontal railing
  • the antenna length is only 34 cm from the center of the mount, also suitable for indoor use
  • output: F connector, impedance: 75 Ohm
  • horizontal and vertical polarization
  • Powered by AC/DC adapter (included) or directly from DVB-T receiver
  • antenna completely assembled, ready for installation

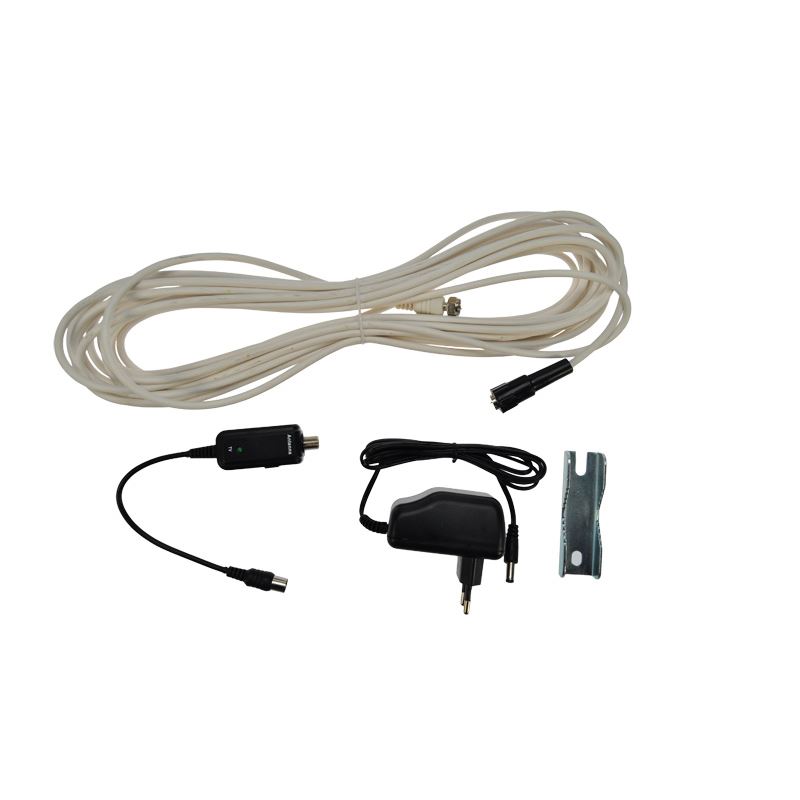

  • included in the package: 10m coaxial cable, connectors, adapter, amplifier, mounting bracket
Outdoor / indoor usageOutdoor
Antenna gain (dB)22
Frequency bandsUHF
Frequency range (MHz)470-790 MHz
4G/LTE filterYes
AmplifierYes
Range (km)50
